Adequate Quality Control Flow Chart Of Placement Print

The quality control/assurance flow chart of placement print is the chart of an overall quality control procedure of placement print. Quality control flow chart of placement print is an important tool used in the garment industry to ensure that clothing items are manufactured accurately and meet the required quality standards. The flow chart outlines the steps involved in the production process and highlights the checkpoints where inspections will be conducted to ensure that placement prints are correctly aligned and that the print colors are consistent.

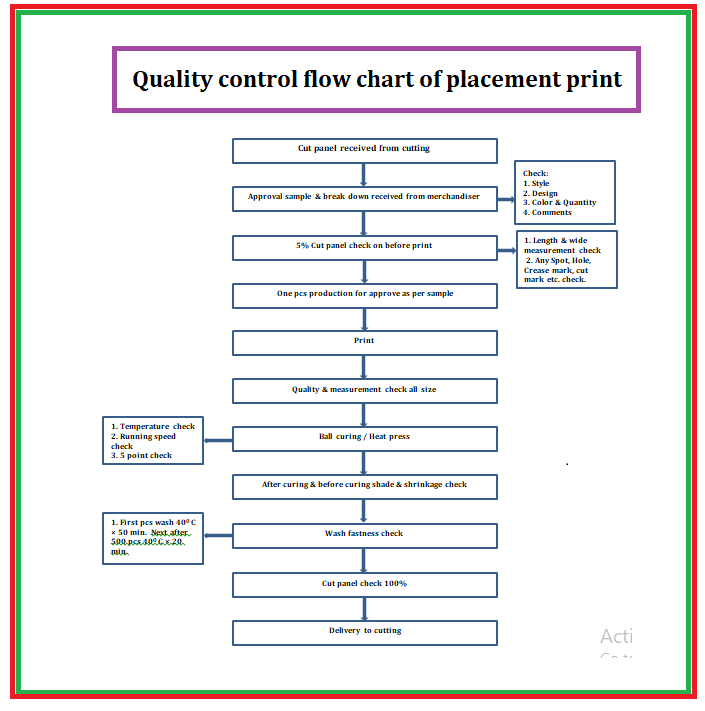

Quality Control Flow Chart Of Placement Print

Cut panel receive from cutting

Approval sample and breakdown received from merchandiser

5% cut panel check no before print

One pcs production for approval as per sample


Quality and measurement check all size

Ball curing / Heat press

After curing and before curing shade and shrinkage check

wash fastness check

Cut panel check 100%

Delivery to cutting

Short description of some steps for the Quality Control Flow Chart

Some steps are discussed below for better understanding…………………

Approval sample: Check some points

  1. Style
  2. Design
  3. Color and Quality

5% cut panel Check: The points are–

  1. Length and wide measurement check
  2. Any spot
  3. Hole
  4. Crease mark
  5. Cut mark

Ball curing / Heat press:

  1. Temperature check
  2. Running speed check
  3. 5 point check

Wash Fastness check

  1. First, pcs wash 40’C and 50min
  2. Next after 500pcs 40’C and 20min


In conclusion, a quality control flow chart for placement print is essential to ensure consistent product quality and customer satisfaction. The flow chart serves as a guide for the entire process, from pre-production to final inspection, helping businesses to identify and rectify any defects. Adopting a systematic approach like this can help streamline processes, reduce errors, and improve production efficiency. Thus, the above discussion will clarify the Quality Control Flow Chart Of Placement Print.
